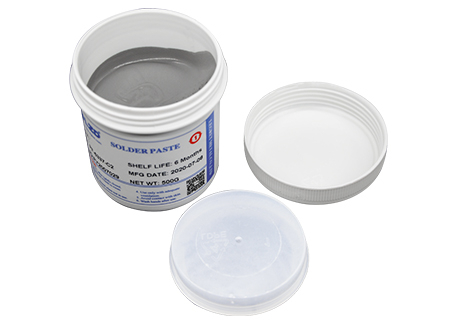

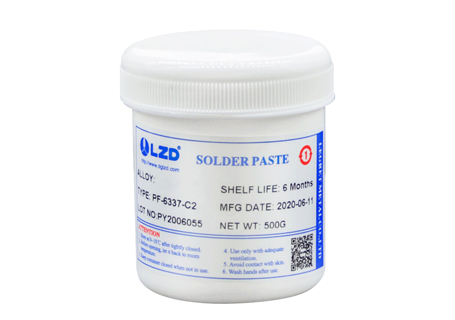

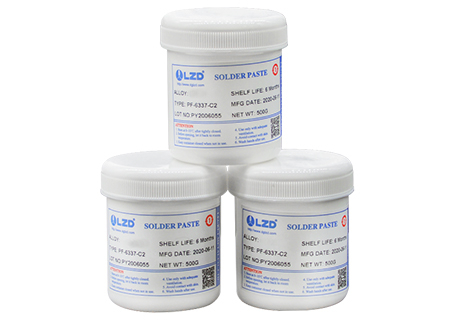

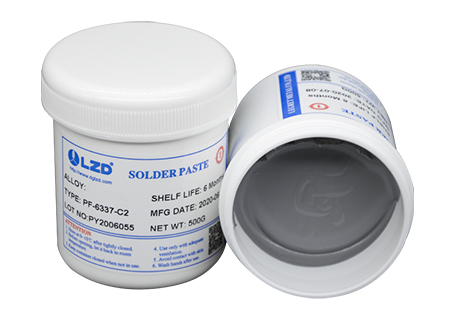

LED Solder paste

LED Solder paste L902

Product parameters

★Loose reflow process window
★Excellent wetting and tin eating ability
★Low bubble and void ratio
★The adhesive force can be maintained for a long time
★Transparent residue

Scope of application

Suitable for SMT industry PCB surface resistance, capacitance, IC and other electronic components welding
Selection of tin powder

Specifications

Maximum limit

Greater than this value less than 1%

Less than 80% between these values

Less than 90 percent

Less than 10%

Recommend suitable process

280μm75μm75-45μm——20μm

pitch≥0.5mm

Inner diameter of needle≥0.8mm

350μm45μm45-25μm——20μm

pitch≥0.4mm

Inner diameter of needle≥0.6mm

4
40μm
38μm
——38-20μm20μm

pitch≥0.4mm

Inner diameter of needle≥0.5mm

528μm
25μm
——25-15μm15μm

pitch≥0.3mm

Inner diameter of needle≥0.4mm
